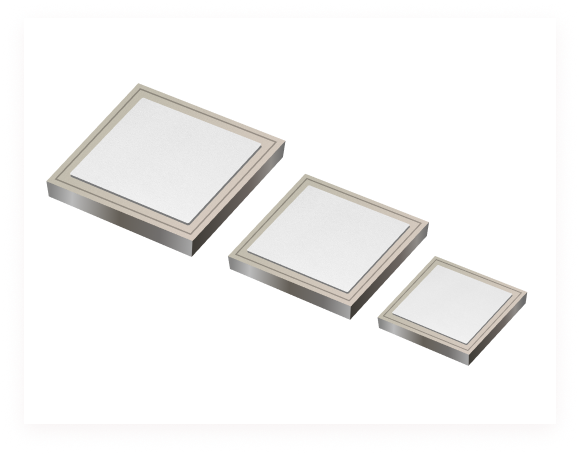

High-Voltage Series Specifications
Production-ready part numbers with rated voltages from 150V to 1200V. Higher voltage options available upon request.
| Part Number | Capacitance (pF) | Status | Rated Voltage (Vdc) | Pad/Chip Size (mil) | Dimensions (mm) | Thickness (μm) | Terminals |
|---|---|---|---|---|---|---|---|
LHV102WB6K1501 |
1000 | In Production | 150 | 18/20 | 0.5*0.5 | 100 | 2 |
LHV150WB9K1021 |
15 | In Production | 1000 | 44/50 | 1.27*1.27 | 300 | 2 |
LHV280WBBK1021 |
28 | In Production | 1000 | 60/68 | 1.27*1.27 | 300 | 2 |
LHV330WBBK1221 |
33 | In Production | 1200 | 60/68 | 1.27*1.27 | 300 | 2 |
* Custom specifications available. Contact our sales team for detailed specifications.
Operating voltage up to 3600V, dielectric withstand voltage up to 9000V, and Q factor exceeding 10,000 at low frequencies.

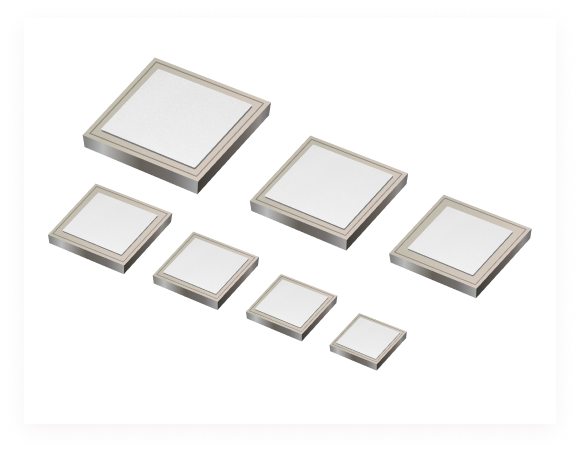

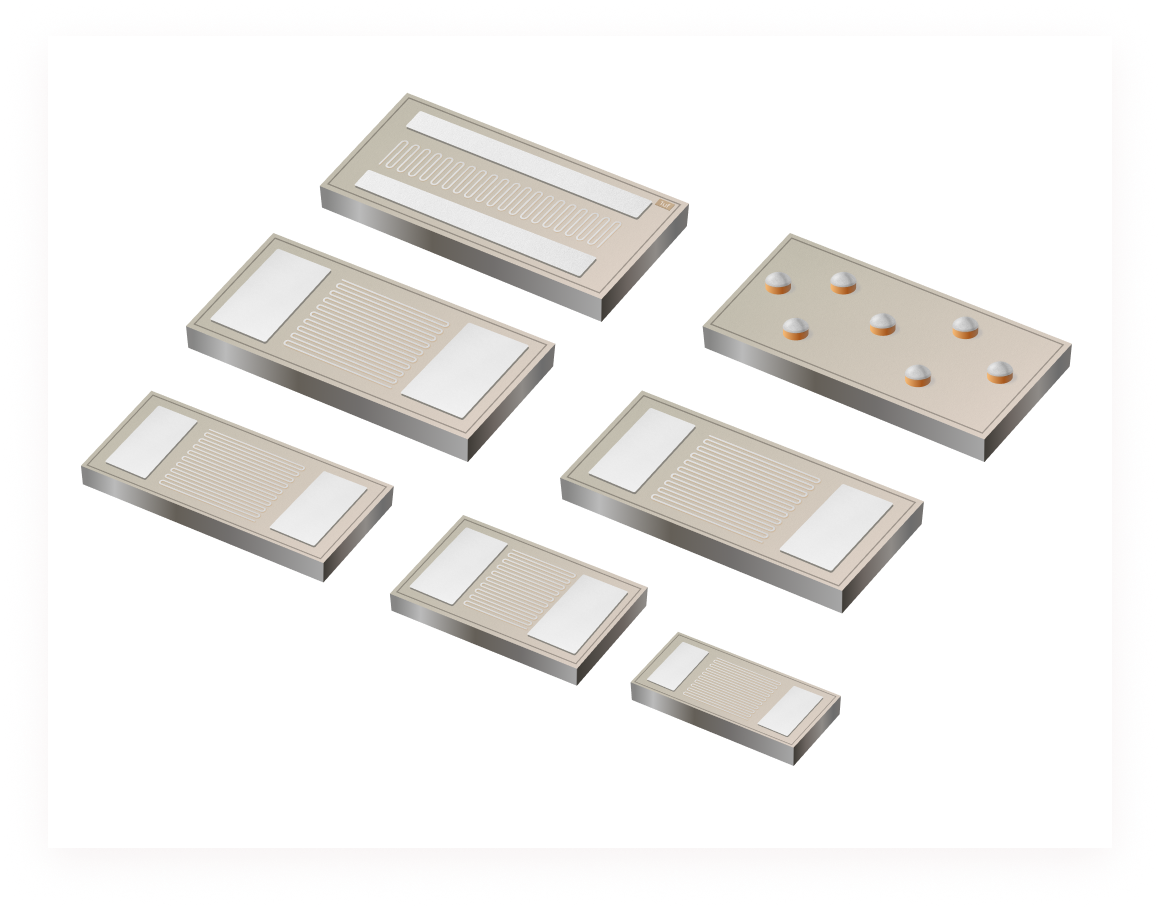

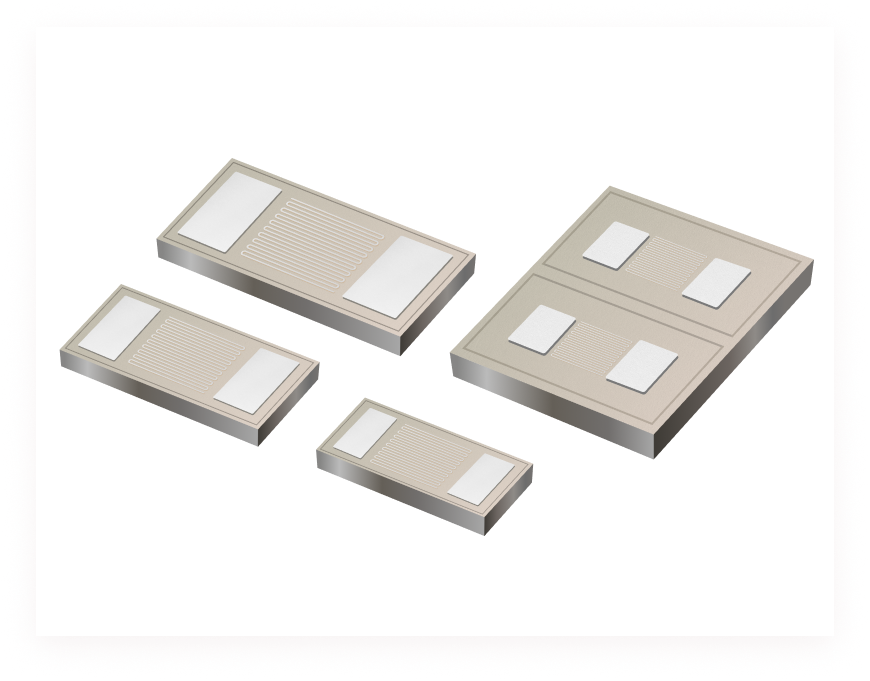

Silicon Capacitor Product Portfolio
From high-capacitance solutions to ultra-high-frequency designs, and from low-voltage to high-voltage applications, our portfolio covers a wide range of performance requirements.
Evaluate Silicon Passive Device Integration for Next-Generation Systems
Engage with our engineering team to assess the deployment of 3D Silicon Capacitors, Silicon Inductors, and Silicon Resistors for AI Infrastructure, Optical Networking, LiDAR, RF Modules, and other high-performance electronic systems.
